Old 02-22-2013, 11:16 PM   #491 (permalink)
Senior Member

Join Date: Aug 2011
Location: Hon. Hawaii
Posts: 429
Default

Brilliant ideas Pete, to visualize somehow the button press in seconds, in real time, in timing the modes is a great addition. and then seen what mode it's in.
I really love this version, it's clicking consistently vs last version, I did make a small hole in the middle instead of the end, so the wires stay separately.so it's
Responsive one click affair again
Aqua is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 02-23-2013, 10:36 AM   #492 (permalink)
Administrator

Join Date: Dec 2005
Location: Thirsk North Yorkshire UK
Posts: 6,704
Send a message via MSN to retepsnikrep
Default Lcd testing

Just showing 20x4 lcd bench testing.

IMAC&C HCH1 Lcd Display Test Video 1 - YouTube

Lots of work to do on the code.
__________________
Pcb's/Kits/Built Units for ObdIIc&c, Imac&c, SimpleCycler, ImaBoost, Current Hacks & HCH1 Fan available.
Enqs to 150mpg[at]gmail.com
retepsnikrep is offline   Reply With Quote Quick reply to this message
Old 02-23-2013, 01:32 PM   #493 (permalink)
Senior Member

samwichse's Avatar

Join Date: Mar 2010
Location: Edge of The Nothing
Posts: 1,680
Default

Very cool! Is there enough code space on the PIC for a basic menu system a-la the HP LaserJets?

Say, for the cancel button:
short press = cancel
long press (1-4 second) = cruise control
VLP = switch display/buttons to menu mode

Then in the menu display an item... the assist and regen buttons switch to the next or previous items. pressing the cancel button puts an * next to the value for the item, and then pressing assist/regen changes the value. Press the cancel button and the * goes away, assist and regen buttons choose items again.

This is similar to the menu used in HP printers and Percival Scientific growth chambers/incubators (except the Percival chambers start the value flashing instead of using a star to show you're in edit mode... I find this a bit annoying).

Sam
__________________
2004 Honda Civic Hybrid "Eeyore" @ 51 mpg
-MaxIMA battery from Bumblebee
-OBDIIC&C
-IMAC&C
-Lower grill block

RIP 2000 Insight, 40k miles @ 69.2 mpg
samwichse is offline   Reply With Quote Quick reply to this message
Old 02-23-2013, 01:54 PM   #494 (permalink)
Lifetime Member

honda-dave's Avatar

Join Date: Dec 2012
Location: County Durham.UK
Posts: 198
Default

Looks very impressive Peter!!
__________________
2005 Honda Civic IMA 74k
OBDIIC&C, Ver21 PIC16F886.
IMAC&C-LCD Ver 15 PIC12683.
...........................................
2005 Honda Civic IMA 44k
OBDIIC&C, Ver27 PIC18F2620.
IMAC&C-LCD, Ver 15 PIC12F683.
honda-dave is offline   Reply With Quote Quick reply to this message
Old 02-25-2013, 03:02 AM   #495 (permalink)
Administrator

Join Date: Dec 2005
Location: Thirsk North Yorkshire UK
Posts: 6,704
Send a message via MSN to retepsnikrep
Default In stock

For the benefit of UK/EU users I have now built 1 system for stock or immediate fitting/despatch. That's the last of my pcb's over here so Eli will be supplying further orders until his pcb stock runs out.

So if you want the HCH1 IMAC&C buzz then it's simply a matter of prising open the wallet.

Pricing as prev posts.


Sam

Yes I'm looking at some sort of menu system and using the flashing lcd cursor. I'm away for two weeks from thursday but will be tinkering with code on my laptop no doubt
__________________
Pcb's/Kits/Built Units for ObdIIc&c, Imac&c, SimpleCycler, ImaBoost, Current Hacks & HCH1 Fan available.
Enqs to 150mpg[at]gmail.com
retepsnikrep is offline   Reply With Quote Quick reply to this message
Old 02-26-2013, 12:05 PM   #496 (permalink)
Junior Member

Join Date: Feb 2013
Location: France
Posts: 23
Default Sorry, again a basic question

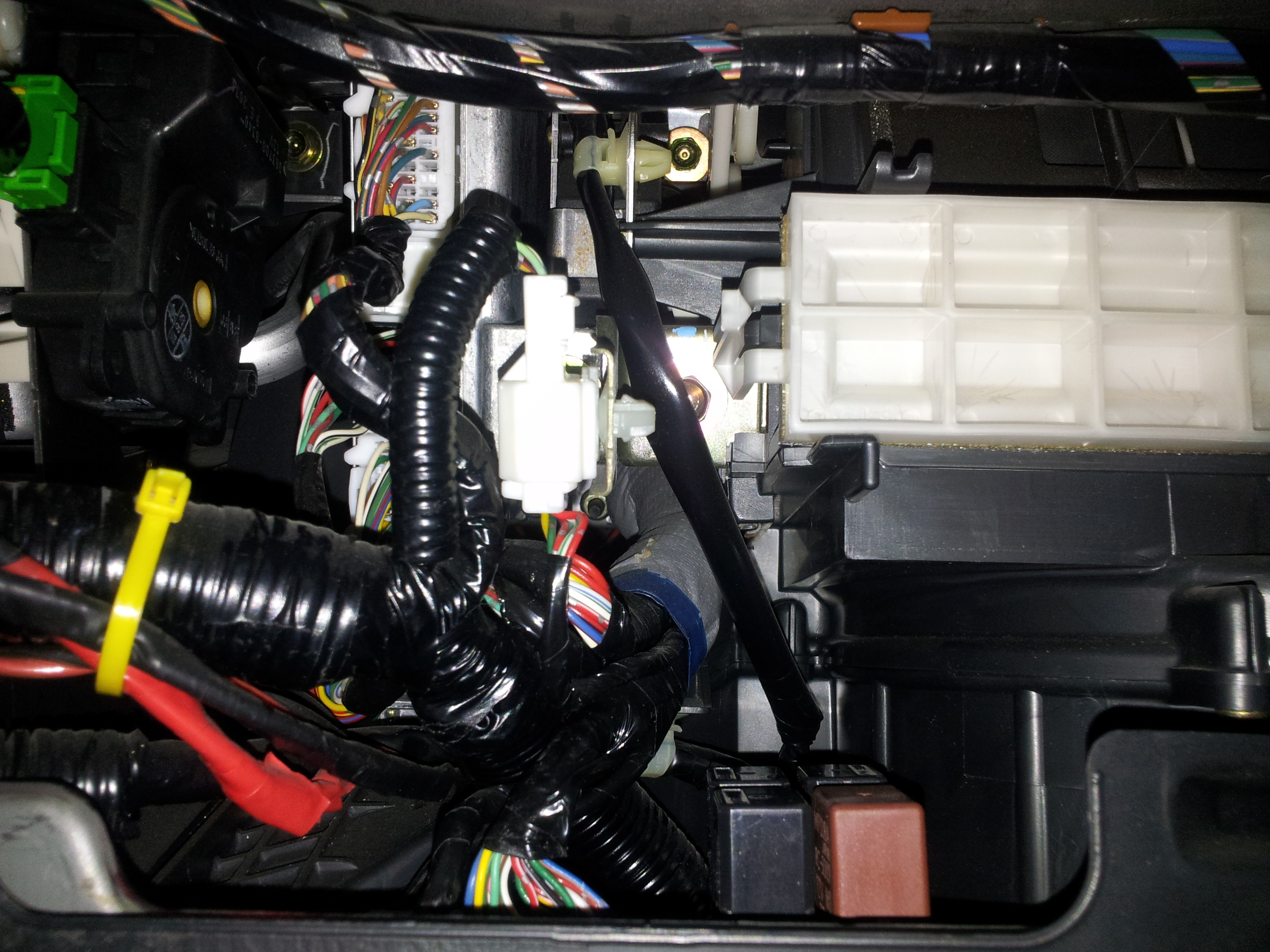

I wonder, as my HCH1 is left hand side driving car, if the connectors are located in the same place as the one I saw on Youtube. Can someone help me finding on this picture where is the ECM connector...
Denis Hoarau is offline   Reply With Quote Quick reply to this message
Old 02-26-2013, 12:18 PM   #497 (permalink)
Administrator

Join Date: Dec 2005
Location: Thirsk North Yorkshire UK
Posts: 6,704
Send a message via MSN to retepsnikrep
Default

Denis the picture is too small we can't see anything.
__________________
Pcb's/Kits/Built Units for ObdIIc&c, Imac&c, SimpleCycler, ImaBoost, Current Hacks & HCH1 Fan available.
Enqs to 150mpg[at]gmail.com
retepsnikrep is offline   Reply With Quote Quick reply to this message
Old 02-26-2013, 01:21 PM   #498 (permalink)
Junior Member

Join Date: Feb 2013
Location: France
Posts: 23
Default

Denis Hoarau is offline   Reply With Quote Quick reply to this message
Old 02-26-2013, 02:50 PM   #499 (permalink)
Senior Member

Join Date: Aug 2011
Location: Hon. Hawaii
Posts: 429
Default

Denis, I believe that the right connecter, it should look like this top picture from Sam. Imac&c hch1 civic
But the wire hook up is here Imac&c hch1 civic
Read 17-18-19. They is a connector pin layout but can't find it, double check your wires, as the colors are very, very light. do You have any Non secret mpg mod for a thread someday?

Last edited by Aqua; 02-26-2013 at 02:53 PM.
Aqua is offline   Reply With Quote Quick reply to this message
Old 02-27-2013, 01:49 AM   #500 (permalink)
Senior Member

Join Date: Aug 2011
Location: Hon. Hawaii
Posts: 429
Default

So close, but so far. LOL, all hook up, The Source 1th pin of pic to Rx Led ok. but not the ground wire, can't see which of the 2 stub or back side of the led light legs is ground other pos. outside or inside is ground? so was touching testing the 3Th pin that ground, next to the 2th pin pos. or VDD and I seen a row of blue blocks and yellow gibish or words so it was working.
But was tapping my last pin connector to ground wire and it went flying, couldn't find it, so went to the store, after grounding to the 3 pin, finish my mini Imac But wouldn't work. I think I might have touch the 5 volt with the ground, I check everything and did re-flash it, ok. and my car work ok without the box normal. I did tongue tested it,taste like 1-3 volts, LOL. I am using tiny USB wire, so I will redo from the ECU again. hopefully my box ok.
Question, do all 3 wires including the 2 pos pin wire (a must can't be solders ) be disconnection for flashing? And is that 3 pin ground ok, but be careful? ( I need smaller insulated pin holder) and I can't use the screw on ground right? I know it's not for a few weeks, but anybody if you can find 4 pin connectors pic type or single connector ( I seen it at radio shack) share a link where found. I also need 3 pin LED connecter they didn't include it. Called 3-pin JST connector, found that.

Last edited by Aqua; 02-27-2013 at 02:15 AM.
Aqua is offline   Reply With Quote Quick reply to this message
