Post Bull Dog’s HCH Transmission Swap Anthology

Bull Dog’s HCH Transmission Swap Anthology



While I was down in Southern California this winter, I purchased a 5-speed manual transmission from a 2005 Honda Civic Hybrid. Scott (KLR3CYL) and I rebuilt it with all new bearings and seals and, afterward we installed it into my 2006 Insight.

Since then, I have driven over 4,500 miles with the HCH transmission in my 2006 Insight. Along the way, I promised several people that I would write about my thoughts and observations related to the swap. This one is for you guys.

Driving experience & Gearing
The HCH Transmission shifts nicer. This is likely due to the large weight mounted on the end of the shift lever. It adds inertia to your inputs and helps dampen the effort required to move between gears.



The main claim to fame of the HCH transmission is it’s 3.6 final drive ratio. Compared to the Insight’s 3.208 final drive, the HCH is 12.2% lower geared overall. It is important to note that both transmissions have the same gear ratios for 1st (3.462) and 5th (0.711). In those gears, the final drive is the sole difference.

Time for a couple of charts and graphs.

You can click on the images below to access the original quality, high resolution versions which are better suited for printing.





I really like that the HCH’s lower geared final drive makes starting from a stop easier. Less clutch slippage is required to get going. The Insight transmission would need a 3.885 first gear to be equivalent the HCH first.

The more evenly spaced gear ratios on the HCH trans means that the next gear, up or down, is never too far away.

Random note: With the HCH transmission, the upshift light does not illuminate in 5th gear.
__________________

To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.

Last edited by Bull Dog; 04-13-2019 at 01:14 AM.
Bull Dog is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 04-12-2019, 06:23 PM   #2 (permalink)
Learner

Join Date: Mar 2015
Location: Northern Idaho
Posts: 311
Default

Lean Burn
Both my 2005 and 2006 Insights will not lean burn above 2,650 RPM. It appears to be a limit coded into the ECU. As an aside, this isn’t the case with all Insights. I’ve driven a model year 2000 Insight that would happily lean burn to at least 2,800 RPM. But for me, 2,600 RPM is the upper limit of what I can reasonably expect to maintain lean burn at.

When this 2,650 engine RPM threshold is met, my Insights will refuse to re-enter lean burn for a period of time afterward unless engine RPMs drop significantly, or the ECU detects a gear change.
5th gear at 2,650 RPM in the HCH transmission is ~69 MPH. This isn’t an issue on level ground as I rarely drive over 65 MPH. However, on downgrades it is all too easy to accidentally exceed 2,650 RPM, and it can be nuisance to get lean burn back.

VSS Problems
The HCH vehicle speed sensor or VSS is not geared the same as the Insight. The HCH speed sensor will cause the speedo to read 7.6% too fast. This means that when the cluster says 70, you will be actually traveling 65 MPH.

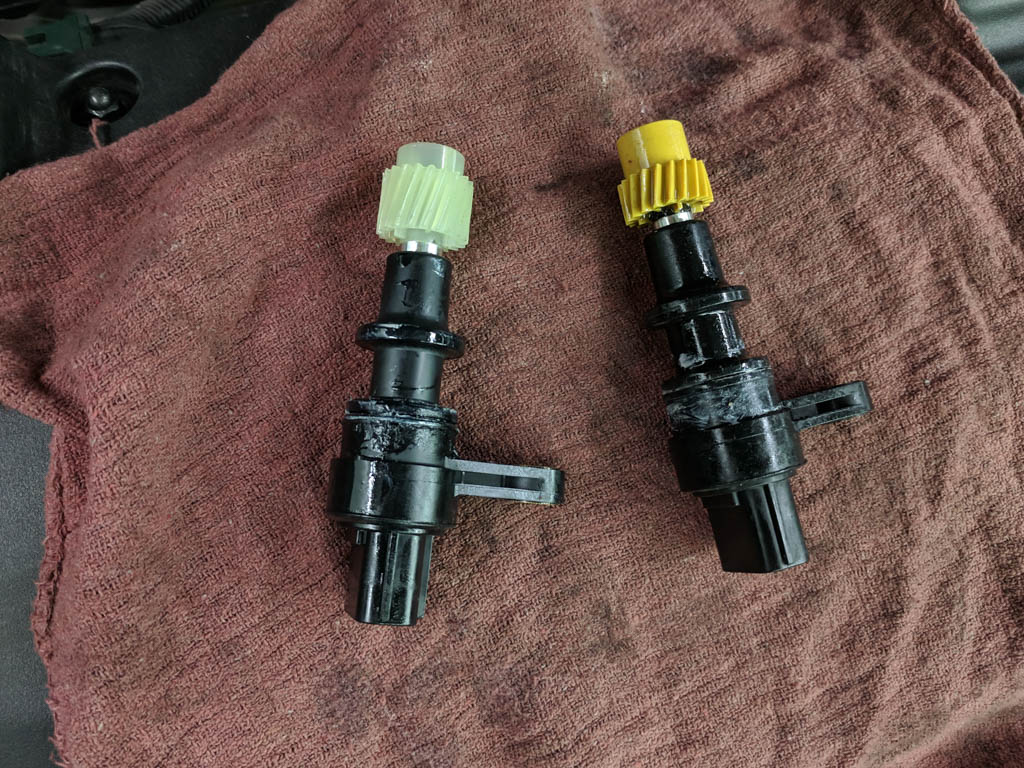

2007-2008 Fit sensor on the left. 2003-2005 HCH sensor on the right.

If you want to get close with an OEM part, you can install a speed sensor from a 2007-2008 Fit. Then your speedo will read only 2.2% fast. This means that when the cluster says 70, you will be really be traveling about 68.5 MPH.

For me, this is still too much error. If I decide to leave the HCH transmission in my car long term, I will pursue some kind of VSS calibration method.

According to the counting I did: The Insight’s speedometer drive gear has 27 teeth and the VSS has 23. The HCH speedometer drive gear has 24 teeth and the HCH VSS has 19. The Fit VSS has 20 teeth.


Fitment Issues

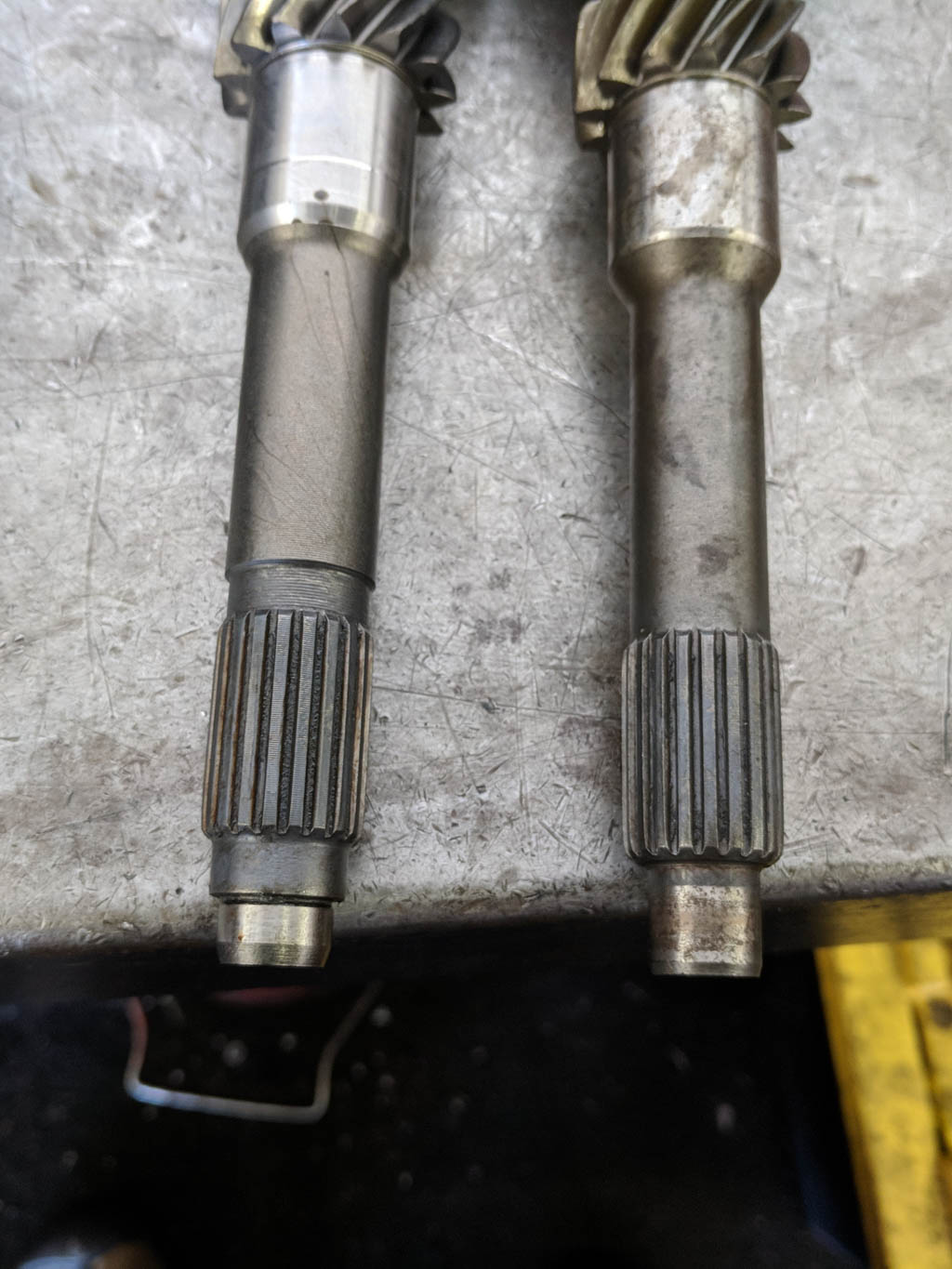

HCH input shaft on the left. Insight on the right.

The shoulder on the HCH mainshaft/input shaft will need to be machined down to make room for the pilot bearing.

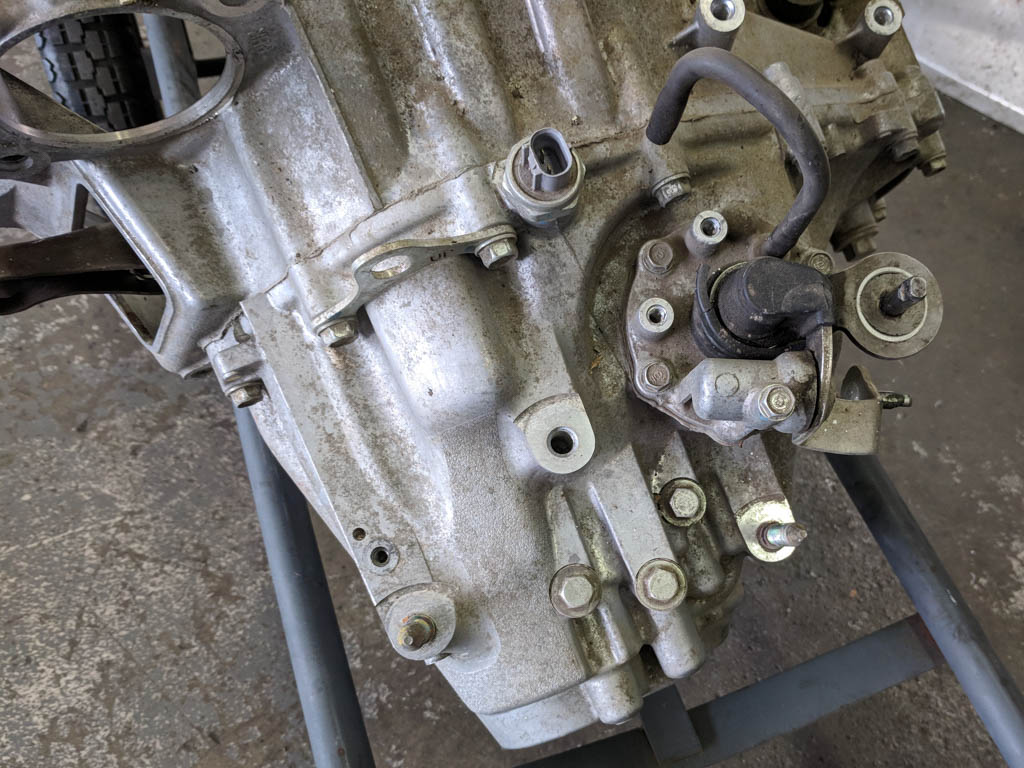

Insight Transmission Above

HCH Transmission Below



The Insight and HCH transmissions share the same bolt pattern for the driver’s side motor mount. Despite this, there are a few issues that still need addressing. Unlike the Insight transmission which uses two M10 studs and one M10 bolt, the HCH trans uses two M12 studs and one M10 bolt.

It will be necessary to acquire two M12 Flange bolts. I recommend Honda part# (94050-12080).
__________________

To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.

Last edited by Bull Dog; 04-12-2019 at 06:38 PM. Reason: Initial Post
Bull Dog is offline   Reply With Quote Quick reply to this message
Old 04-12-2019, 06:23 PM   #3 (permalink)
Learner

Join Date: Mar 2015
Location: Northern Idaho
Posts: 311
Default

Fitment Issues Continued



The M12 stud has a flared section that won’t fit in the hole on the rear side of the Insight motor mount bracket. It will be necessary to partially clearance the hole with a 14mm or 9/16in drill bit.

Side note: The Insight’s rear motor mount bracket will bolt to the HCH transmission with no issues.




The reverse switch on the HCH transmission is not in the same location as it is on the Insight trans. In order to make the plug reach, it will be necessary to extend the wiring. I got lucky. My HCH transmission came with an extra plug and wiring that I was able to use to extend the OEM harness without cutting it.




The rear air box support bracket is secured with two bolts to the to the top of the shift tower on the Insight transmission. The HCH transmission is missing the second bolt hole. It’s not ideal, but using one bolt to anchor the bracket seems to be working on my car.

The IMA System Works
I wasn’t entirely sure if the IMA system would work properly with a different transmission. I’m happy to report that it does. (And yes, I missed Sigma's post back in December where he said it does.)

There are some occasional oddities where the car will refuse to regen. The most frequent occurrence of this is when I shift into to 5th gear at around 38-40 MPH with little or no throttle while letting the clutch out. When it happens, the car will refuse to regen even when pressing on the brake pedal. I haven’t extensively tested this, as I will usually just downshift to 4th or 3rd instead.
__________________

To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.

Last edited by Bull Dog; 04-12-2019 at 06:50 PM. Reason: Initial Post
Bull Dog is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 04-12-2019, 06:24 PM   #4 (permalink)
Learner

Join Date: Mar 2015
Location: Northern Idaho
Posts: 311
Default

Parts Interchangeability

Despite the fact that you can pretty much bolt an HCH transmission up to an Insight, there are enough differences inside, that the list of parts that will interchange with an Insight transmission is still a work in progress.

Is it quite likely that the 3rd and 4th gearsets can be swapped. My confidence interval on this is 95%.

Countershaft & Ring Gear: While the overall length of the countershaft and the diameter of the splined sections appear to be the same, the pinion is not. This is expected as the pinion and ring gear are part of a matched set. You can’t change one without the other. Nevertheless, the countershaft should physically fit inside an Insight transmission case.



The HCH ring gear is held to the carrier with ten bolts. The Insight’s ring gear uses only eight bolts but still in a 10-bolt circle.

This naturally begs the question, “Can you bolt an HCH ring gear to an Insight carrier?” I don’t know. Yet.

I will update this section when I know more.



A non-exhaustive list of parts that can definitely not be swapped.



Mainshaft: The HCH mainshaft is longer and the teeth for reverse are cut in the opposite location as on the Insight mainshaft.




Reverse Idler: Except for the number of teeth, the HCH reverse idler is completely different and is actuated in the opposite direction compared to the Insight one.
__________________

To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.

Last edited by Bull Dog; 04-12-2019 at 07:06 PM.
Bull Dog is offline   Reply With Quote Quick reply to this message
Old 04-12-2019, 06:24 PM   #5 (permalink)
Learner

Join Date: Mar 2015
Location: Northern Idaho
Posts: 311
Default

A non-exhaustive list of parts that can definitely not be swapped - continued


(Carrier - The subassembly that houses the spider gears as well as retains the axles. It is sometimes referred to as a Differential Case or Ring Gear Carrier. This unit transfers the motion from the ring gear to the axle shafts.)

Carrier: While the HCH and Insight carriers both accept axles with the same spline count and seal diameter, the similarity ends there.



Insight carrier bearing inner diameter above…

…HCH below



HCH carrier bearings are bigger. The HCH carrier uses bearings with a 40mm inside diameter and on an Insight, they are 35mm. This also affects overall bearing diameter which is 80mm for the HCH and 72 mm for an Insight.

Speedometer Drive Gear: The carrier bearing difference also affects the nylon gear that drives the speed sensor. An Insight’s speedometer drive gear has an inside diameter of 35mm. This quite obviously won’t fit over the HCH’s 40mm diameter carrier. The outside diameter of the HCH speedometer drive gear is also larger with fewer teeth compared to the Insight.

Speed Sensor (VSS): The gear on the Insight’s speed sensor is larger than the HCH speed sensor. Because of this, the Insight’s VSS will not mesh with the HCH’s speedometer drive gear…and even if it could, it still wouldn’t read accurately
__________________

To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.

Last edited by Bull Dog; 04-12-2019 at 07:13 PM.
Bull Dog is offline   Reply With Quote Quick reply to this message
Old 04-12-2019, 07:06 PM   #6 (permalink)
Learner

Join Date: Mar 2015
Location: Northern Idaho
Posts: 311
Default

Mass and Weight





The HCH transmission weighs 9.3 pounds more than an Insight transmission. It’s remarkable how Honda was able to make the Insight transmission over 12% lighter than a regular Civic transmission from that era.

While rebuilding the HCH transmission, I found it fascinating to compare the HCH transmission with the Insight transmission and observe some of the ways Honda saved weight with the Insight transmission. For example, the Insight transmission case is thinner. The Insight transmission’s shift fork shafts are hollow while in the HCH transmission they are solid. The Insight’s reverse gear was lightened, specifically for the Insight. The Insight ring gear has extra holes drilled in it. The shift lever weight present on most front wheel drive Honda manual transmissions was omitted. The list goes on…even the Shift Arm Cover shows evidence it was lightened compared to the HCH one.


Would I recommend it?
If you are running your car gas only, the combination of the more evenly spaced gear ratios and the 12.2% lower geared final drive should be a welcome improvement.

For me, the equation is different as I intend to keep my IMA system working. I love the 12% lower first gear. I like that the gears are more evenly spaced and closer together. On the other hand, I have come to realize that I am not in love with the 12% lower 5th gear and the VSS issue.

It would seem that something between the Insight’s 5th and the HCH’s 5th might be in order…but that’s a story for another time.
__________________

To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.

Last edited by Bull Dog; 04-13-2019 at 01:25 AM. Reason: Original Post
Bull Dog is offline   Reply With Quote Quick reply to this message
Old 04-12-2019, 08:19 PM   #7 (permalink)
Senior Member

Join Date: Dec 2016
Location: Scottsdale, Az the good part
Posts: 780
Default

Running bypassed I'm very happy with mine. The car bypassed always struggled insanely at altitude going up hills and it's now got a fighting chance if I'm willing to push it over 4k rpms. Even with headlights on I haven't found a huge issue with the battery getting run down on 5 to 10 minute dc-dc shutdowns while climbing so I'm not too worried yet. The hills are steep enough I could bump start it in reverse if it ever did die on me.
hondarider90 is offline   Reply With Quote Quick reply to this message
Old 04-13-2019, 12:59 AM   #8 (permalink)
Lifetime Member

davenm's Avatar

Join Date: Apr 2012
Location: santa fe, nm
Posts: 415
Default

Thanks for the write-up, and well done!

Having driven Bull Dog's car with the HCH transmission, I was impressed enough to buy one of these transmissions and begin planning for a trip to Scott's for the swap in one of my cars.
__________________
Silver 2006 MT #531, 202K miles : Genesis One GCO1 Charger, OBDIIC&C, MIMA 070 PnP, GAZ rear shocks, KLR3CYL rear springs and belly pan
Silver 2005 MT #107, 187K miles : OBDIIC&C, KLR3CYL belly pan. Still fixing small things.
Silver 2001 MT #683, 256K miles : Beater/test bed. Might sell it later.
davenm is offline   Reply With Quote Quick reply to this message
Old 04-13-2019, 03:40 AM   #9 (permalink)
Administrator

Join Date: Dec 2005
Location: Hull. East Riding of Yorkshire.
Posts: 10,352
Send a message via MSN to retepsnikrep
Default Nice Writeup

Interesting and useful addition to the knowledge base and archive..
__________________

To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.

ObdIIc&c, Imac&c, ImaBoost, Current Hacks available. Enqs to 150mpg[at]gmail.com
retepsnikrep is online now   Reply With Quote Quick reply to this message
Old 04-13-2019, 09:23 AM   #10 (permalink)
Senior Member

Join Date: Apr 2017
Location: Mesa, AZ 85204
Posts: 749
Default

I solved the VSS issue a while back using an Arduino Uno.

Contact me if you want to pursuit that route.
__________________

To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.
. Warm White or Cool White available!

To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.

2000 Insight,
To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 2 or greater. You currently have 0 posts.
.
tryingbe is offline   Reply With Quote Quick reply to this message
